IP30 Slim type Industrial Media Converter SC MM (-40 to 75 degree C)

IFT-802T


  Categoria: Networking e Cablaggio

Disponibile

Distance Extension with High Performance and Steady Network Communication
PLANET 10/100Base-TX to 100Base-FX Industrial Media Converter IFT-80xT series extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the IFT-802T, up to 15km with the IFT-802TS15 or up to 20km with the IFT-805AT (depending on SFP module). The IFT-80xT series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under the temperature range from -40 to 75 degrees C allows the IFT-80xT series to be placed in almost any difficult environment.

Robust Media Converter Performance

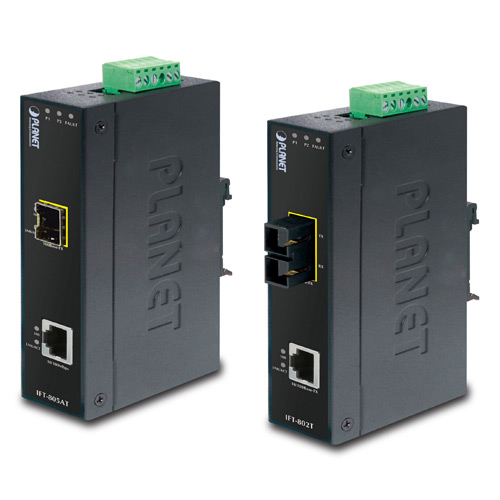

PLANET IFT-80xT 10/100Base-TX to 100Base-FX Industrial Media Converter series efficiently converts data between 10/100Base-TX and 100Base-FX network. The IFT-80xT series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.

Easy Installation and Wide Range of Power Usages
The IFT-80xT series is packaged in a compact IP-30 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.


Ordering Information
IFT-802T 10/100Base-TX to 100Base-FX Industrial Media Converter - 2km
(-40~75 degrees C)
IFT-802TS15 10/100Base-TX to 100Base-FX Industrial Media Converter - 15km
(-40~75 degrees C)
IFT-805AT 10/100Base-TX to 100Base-FX (SFP) Industrial Media Converter
(-40~75 degrees C)

Accessories
MFB-FX SFP-Port 100Base-FX Module; LC, Multi-Mode (1310nm) - 2km
(0~50℃)
MFB-F20 SFP-Port 100Base-FX Module; LC, Single Mode (1310nm) - 20km
(0~50℃)
MFB-F40 SFP-Port 100Base-FX Module; LC, Single Mode (1310nm) - 40km
(0~50℃)
MFB-F60 SFP-Port 100Base-FX Module; LC, Single Mode (1310nm) - 60km
(0~50℃)
MFB-FA20 SFP-Port 100Base-BX Module; WDM / Bidi LC, Single Mode (TX:1310nm, RX:1550nm) - 20km (0~50℃)
MFB-FB20 SFP-Port 100Base-BX Module; WDM / Bidi LC, Single Mode (TX:1550nm, RX:1310nm) - 20km (0~50℃)
MFB-TFX SFP-Port 100Base-FX Module; LC, Multi-Mode (1310nm) - 2km
(-40~75℃)
MFB-TF20 SFP-Port 100Base-FX Module; LC, Single Mode (1310nm) - 20km
(-40~75℃)
